A better yard hydrant. Bury it, or install waist high. Self-drains automatically when disconnected for effortless freeze protection. Self-cleaning outlet easily purges dirt and debris. Requires no maintenance or upkeep, plus you can mow right over it.
The Aquor Ground Hydrant, a frostproof yard hydrant for the 21st century

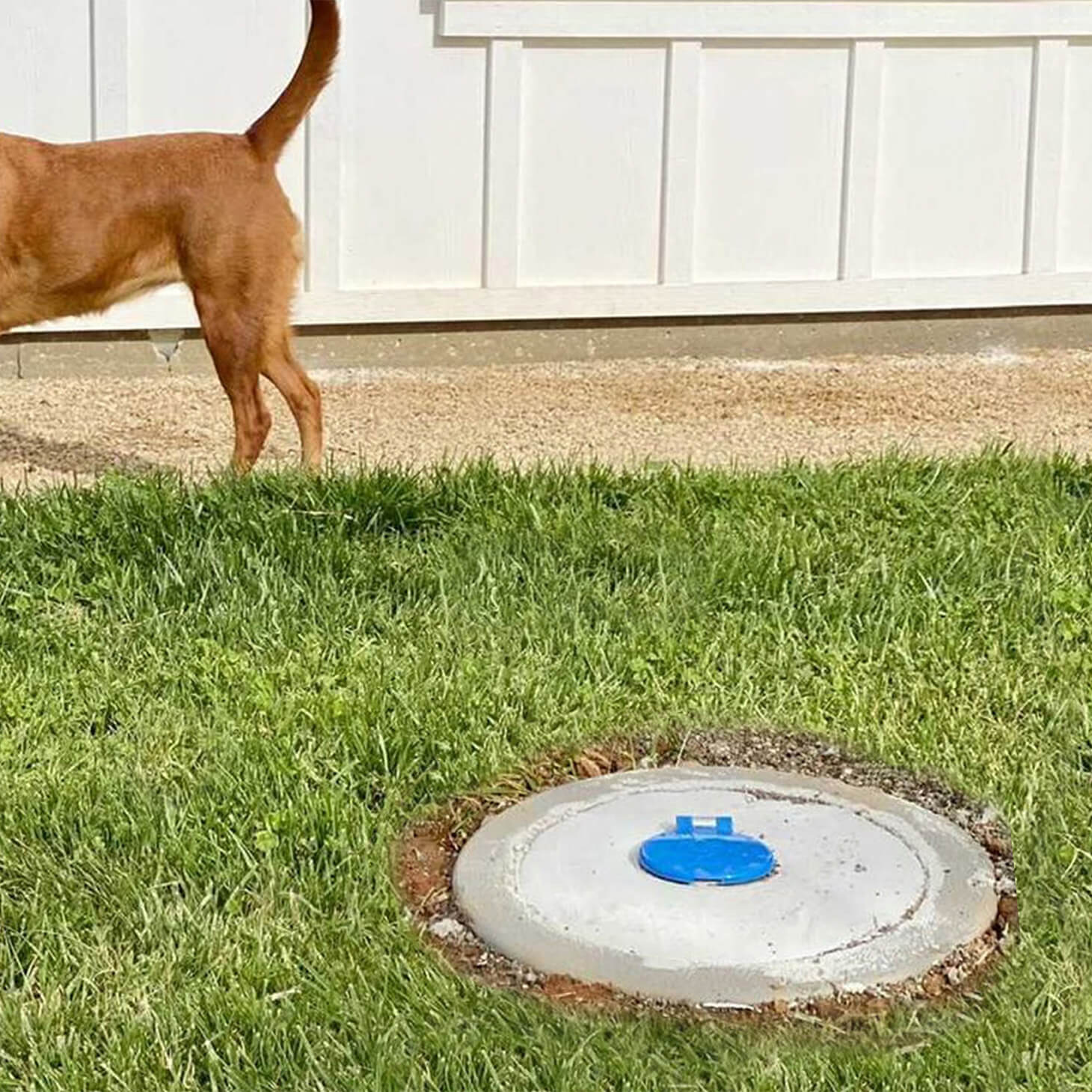

- Install flush or recessed
- Sub-zero freeze protection
- 100% lead-free stainless steel
Install at any height for ease of use

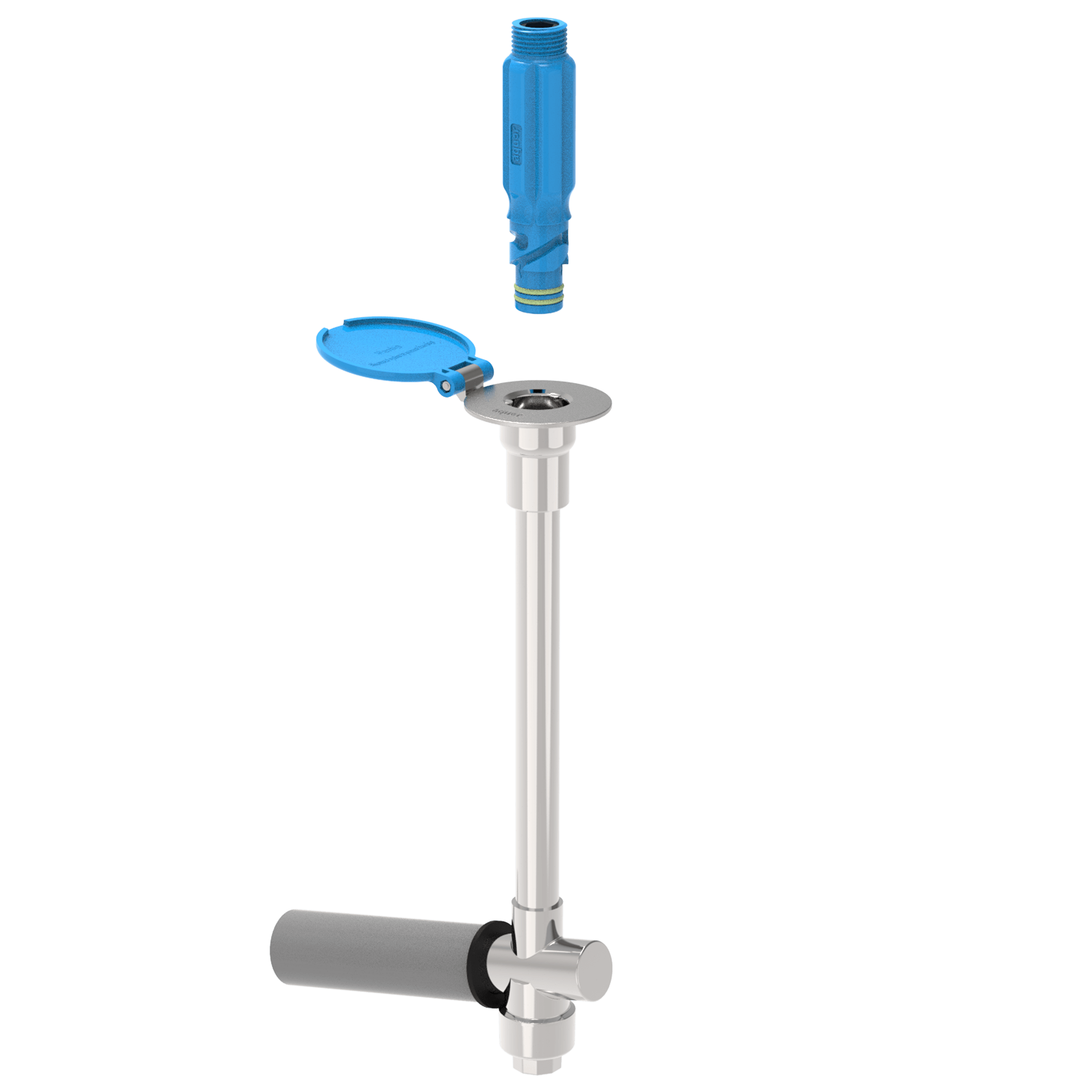

The Aquor Ground Hydrant is a twist lock connection system that can be installed at any height—recessed, flush with the ground, or waist level. It is 100% frost-free, leak-free, and lead-free. Plus the hydrant self-cleans, so regular maintenance is not required.
Best materials industry wide
- 316L stainless steel, 100% lead-free and freeze-proof
- Acetal resin connectors, crush-proof up to 200+ lbs
- Viton® O-Rings, long-lifetime and resistant to wear
- Push and twist connection tested for 150,000+ cycles of use
Accessible water when and where you need it
- Sleek flush-mounted design with water security
- Instant water access with simple push and twist motion
- Water-tight seal for a 100% leak-free design
- Self-cleans for maintenance-free use
|In the Box||Hydrant, Debris Cover, Hose Connector, Install Instructions|
|Install Level||Medium; plumbing knowledge and tools required|
|Average Install Time||1 hour|
|Warranty||10 yrs stainless steel, 5 yrs polymer|
|Outlet||3/4" Garden Hose Thread|
|Operating Temperature||33-140 °F|
|Operating Water Pressure||25-125 PSI|
|Flow Rate||6.8 GPM @ 52 PSI|
|Plumbing Compatibility||All (PEX recommended)|
|Hydrant Material||316L Stainless Steel|
|Connector Material||Acetal Resin Polymer|
|O-Ring Material||Fluorocarbon Rubber|
|Cover Material||ASA Thermoplastic|

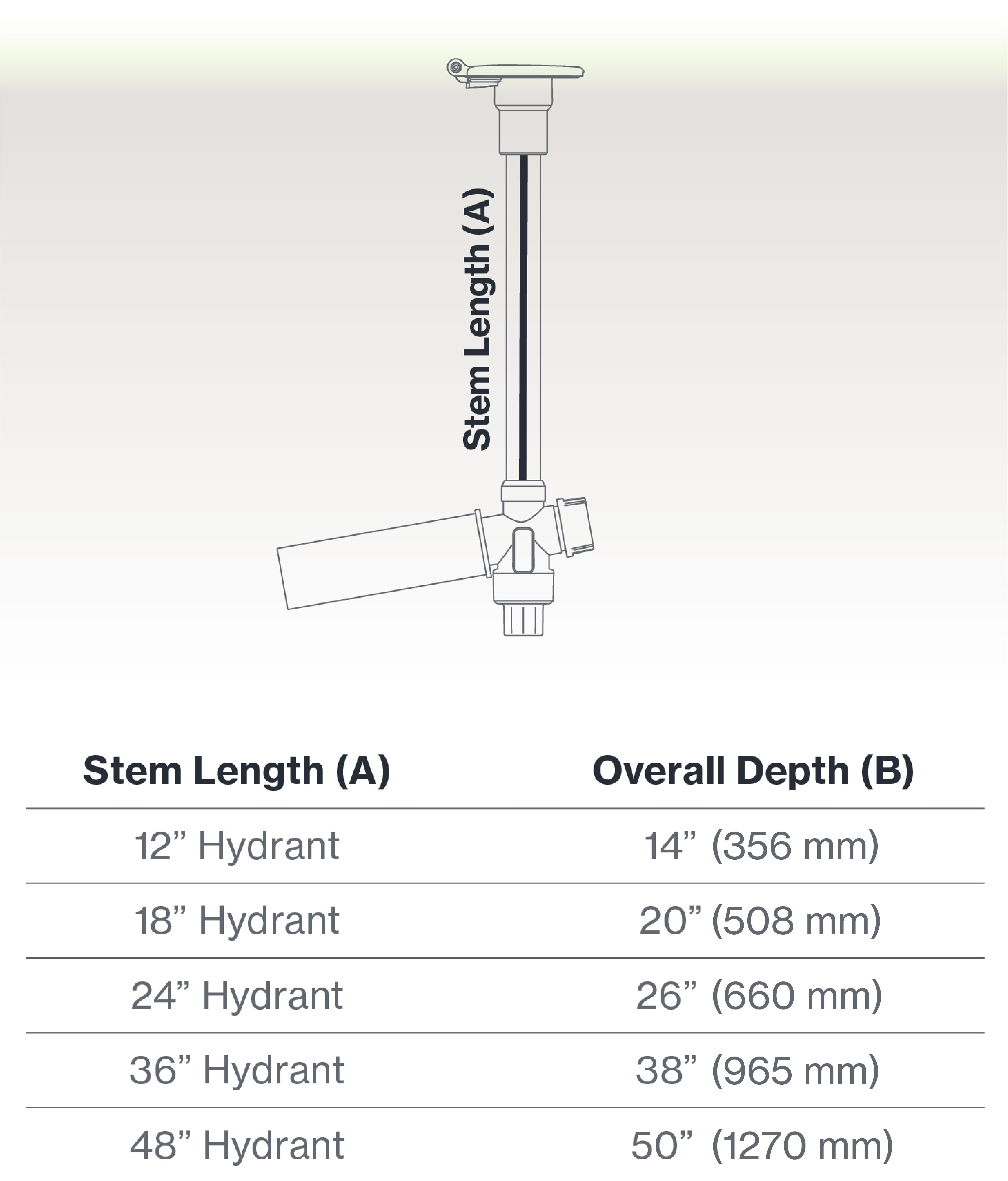

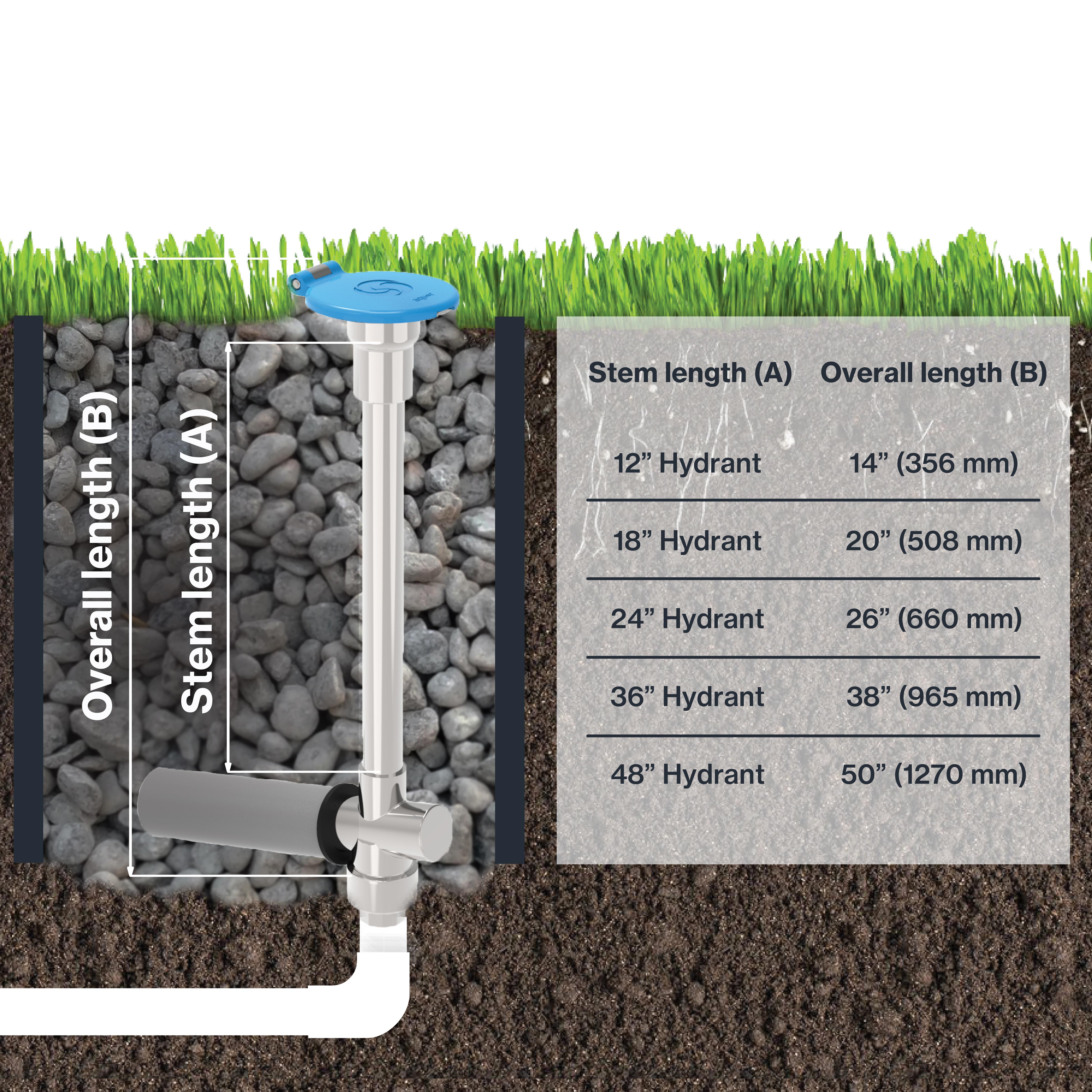

|Overall Length||Stem Length|
|14" / 356 mm||12"|
|20" / 508 mm||18"|
|26" / 660 mm||24"|
|38" / 966 mm||36"|
|50" / 1270 mm||48"|

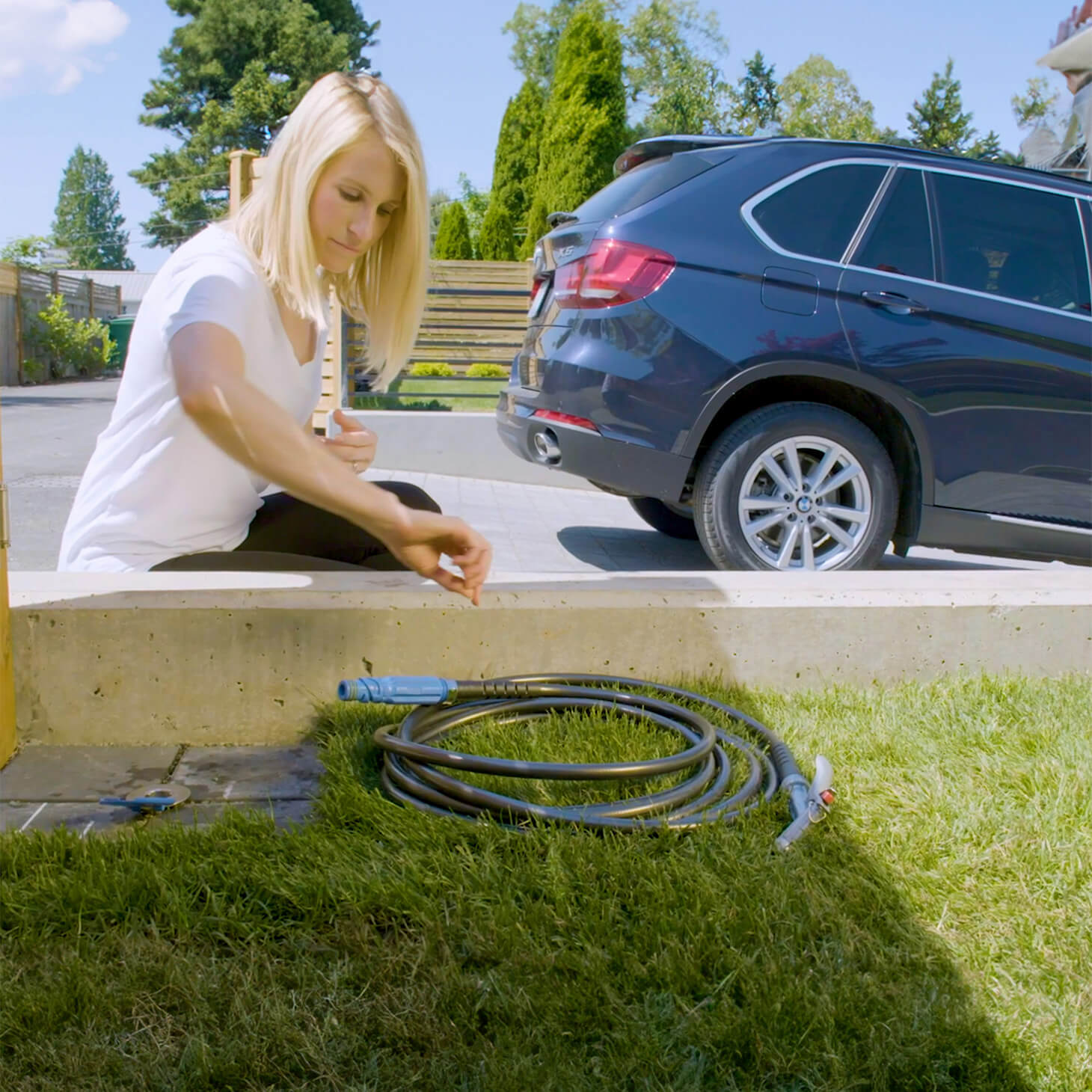

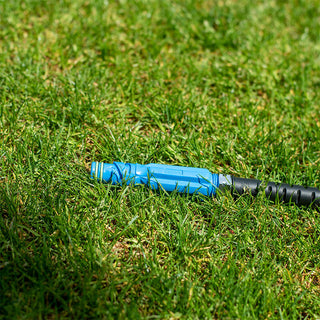

Attach hose connector to your garden hose
Securely attach an Aquor connector to any garden hose. For convenience, add a connector to every hose you use. No need to remove the connectors!
Connecting to Hydrant

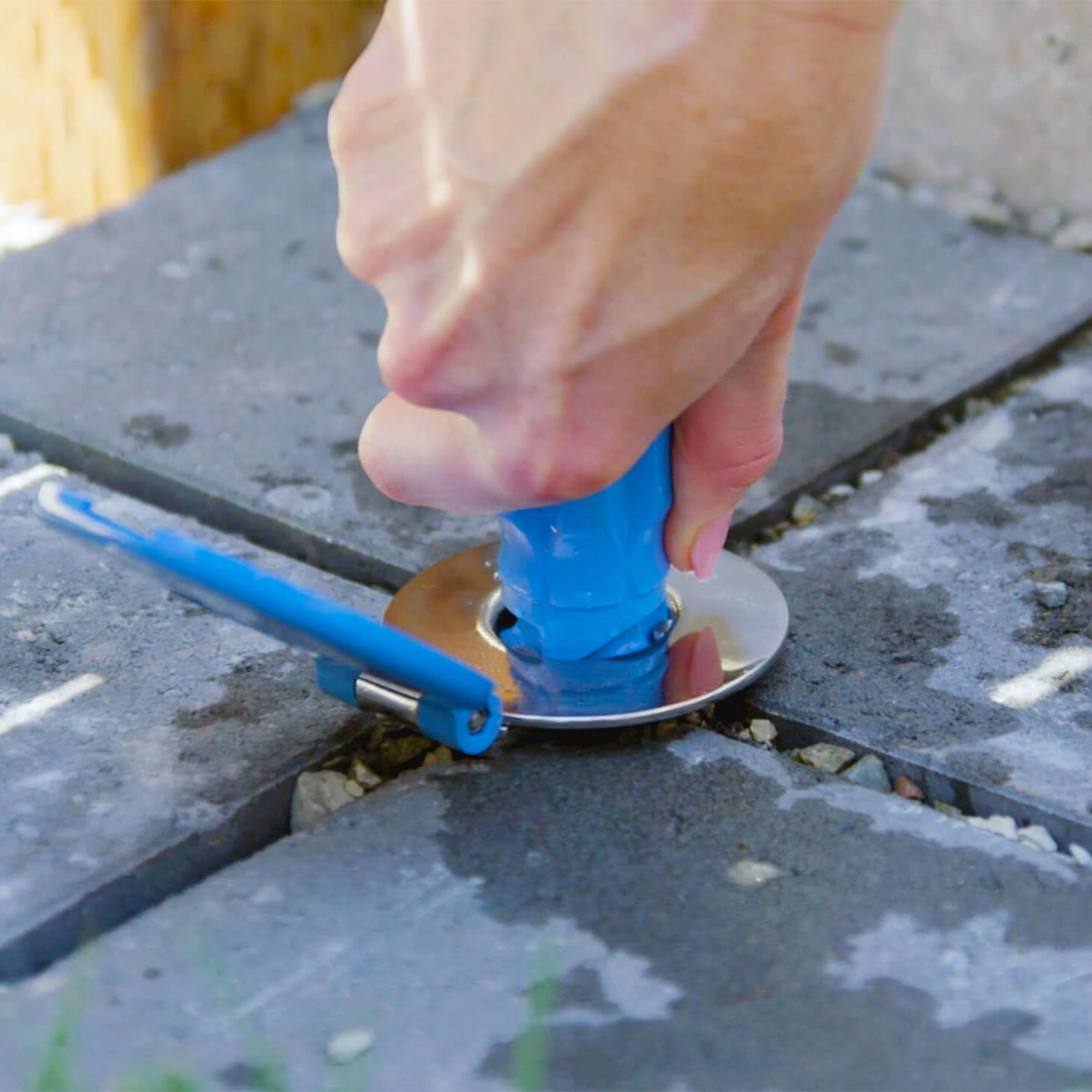

Connect with a simple push & twist
Align the 3 grooves on the connector with the nibs on the hydrant. Gently push in, then turn clockwise to connect. This opens the valve and water flow starts instantly.
Unplug hose connector to drain
Disconnect by simultaneously pushing in and turning counterclockwise. Water stops instantly, and your hydrant will drain automatically. We recommend storing your connector and hose out of the elements.
