Name: 1/2" PEX Expansion 90° Elbow Inlet
Brand: Aquor
Price: 19.8 USD
Availability: InStock

1/2" PEX Expansion 90° Elbow Inlet

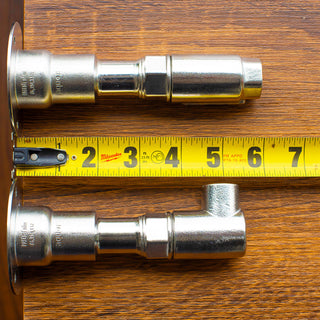

Replaces standard straight 1/2" NPT inlet. For use with cold-expansion 1/2 in PEX tubing. Shortens overall length of hydrant by 1/2 in. Can be positioned in any direction due to unique O-ring seal. Tighten fully, then back off to desired placement (up to 360°, 1 rotation). Precision-cast 316L stainless steel. Includes stainless steel valve reset spring.

Not compatible with Ground Hydrants or Hot+Cold Hydrant.

SKU: INL-EL-12-PEX-EX

$19.80

Unit price: per

Fitting Type: 1/2" PEX Expansion 90° Elbow Inlet

Quantity

Payment installments viaavailable in checkout

5-Year Limited Warranty

Free Shipping in US over $200

Est. Delivery in 3-10 Business Days

Tech Specs

Additional Info & Tips

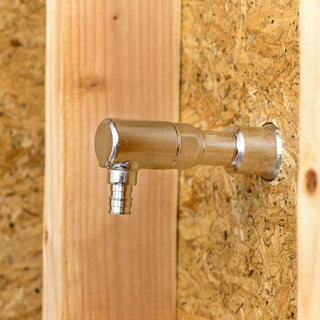

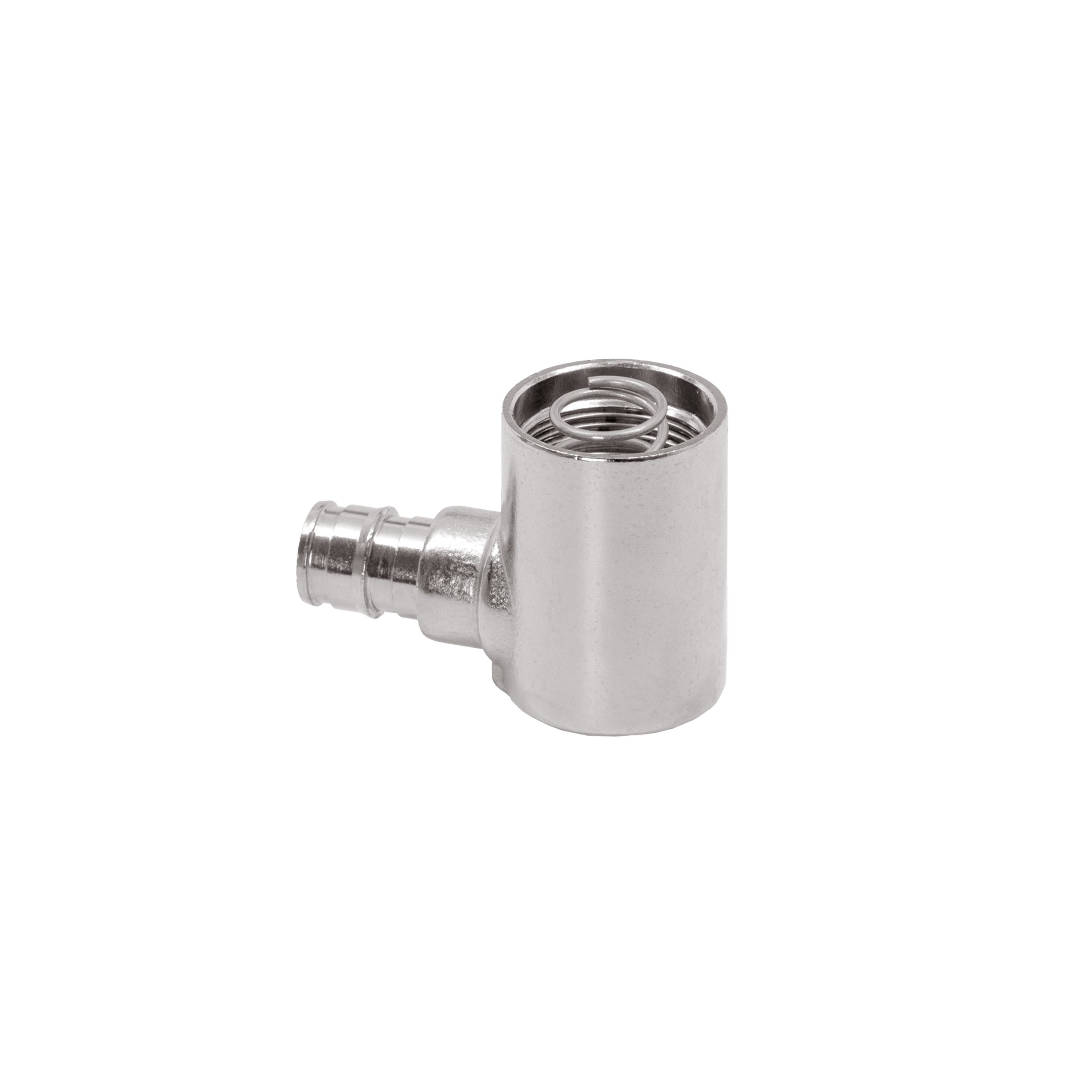

A product shot of the half inch elbow PEX expansion inlet.

1/2" PEX Expansion 90° Elbow Inlet

$19.80

As Easy as 1, 2, 3

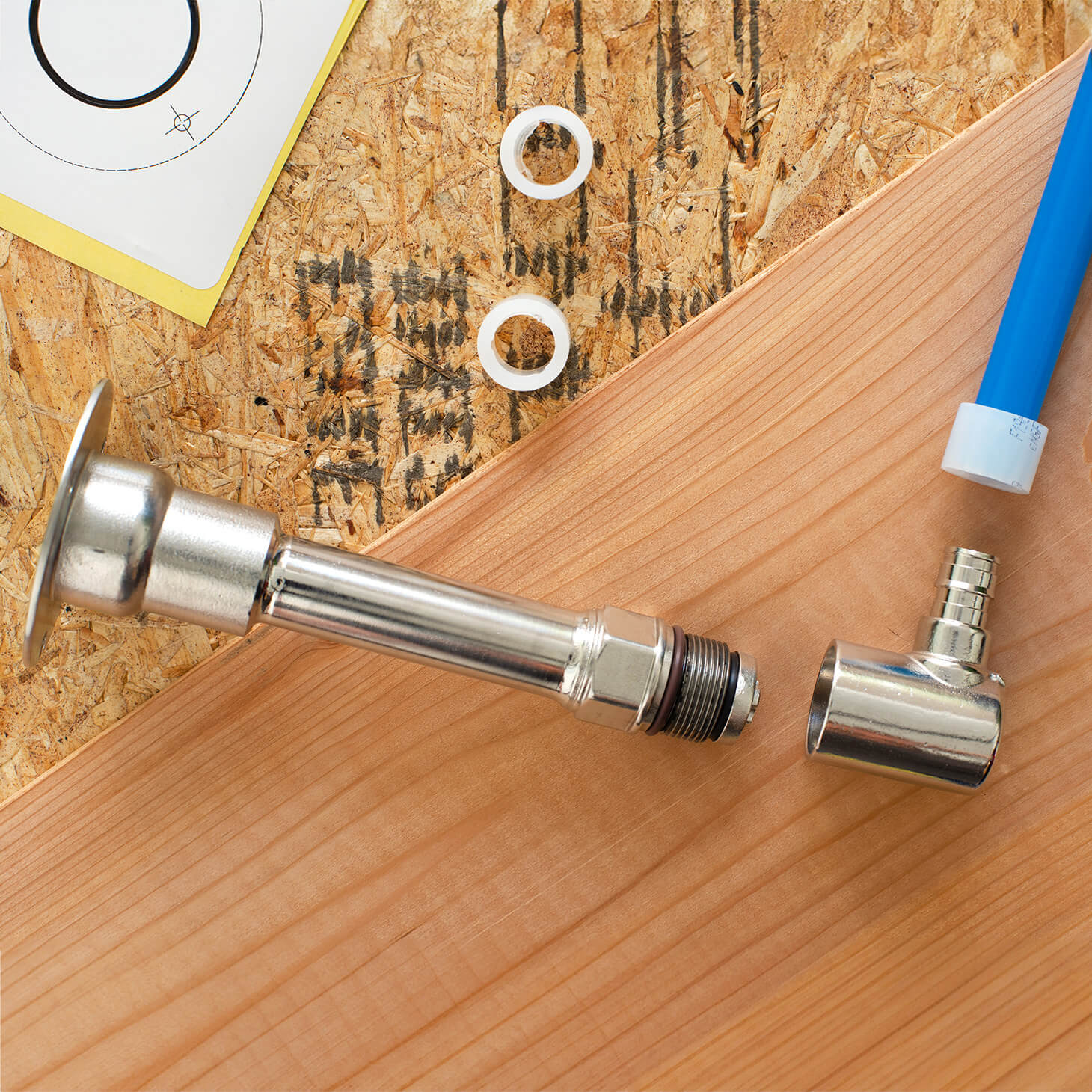

1: Remove Existing Inlet

Remove existing inlet by unscrewing counterclockwise. Ensure the O-ring on the Hydrant body is properly seated.

Note: DO NOT use Teflon tape on hydrant body threads. This may cause leaks. Only use Teflon tape on plumbing connection (fitting) threads.

2: Hand Tighten New Inlet

Hand tighten new inlet onto Hydrant body by threading clockwise. For elbow inlets, rotate counterclockwise until the inlet is positioned in the correct direction for installation. The O-ring will keep a watertight seal up to 360° from full lock, up to 250 PSI.

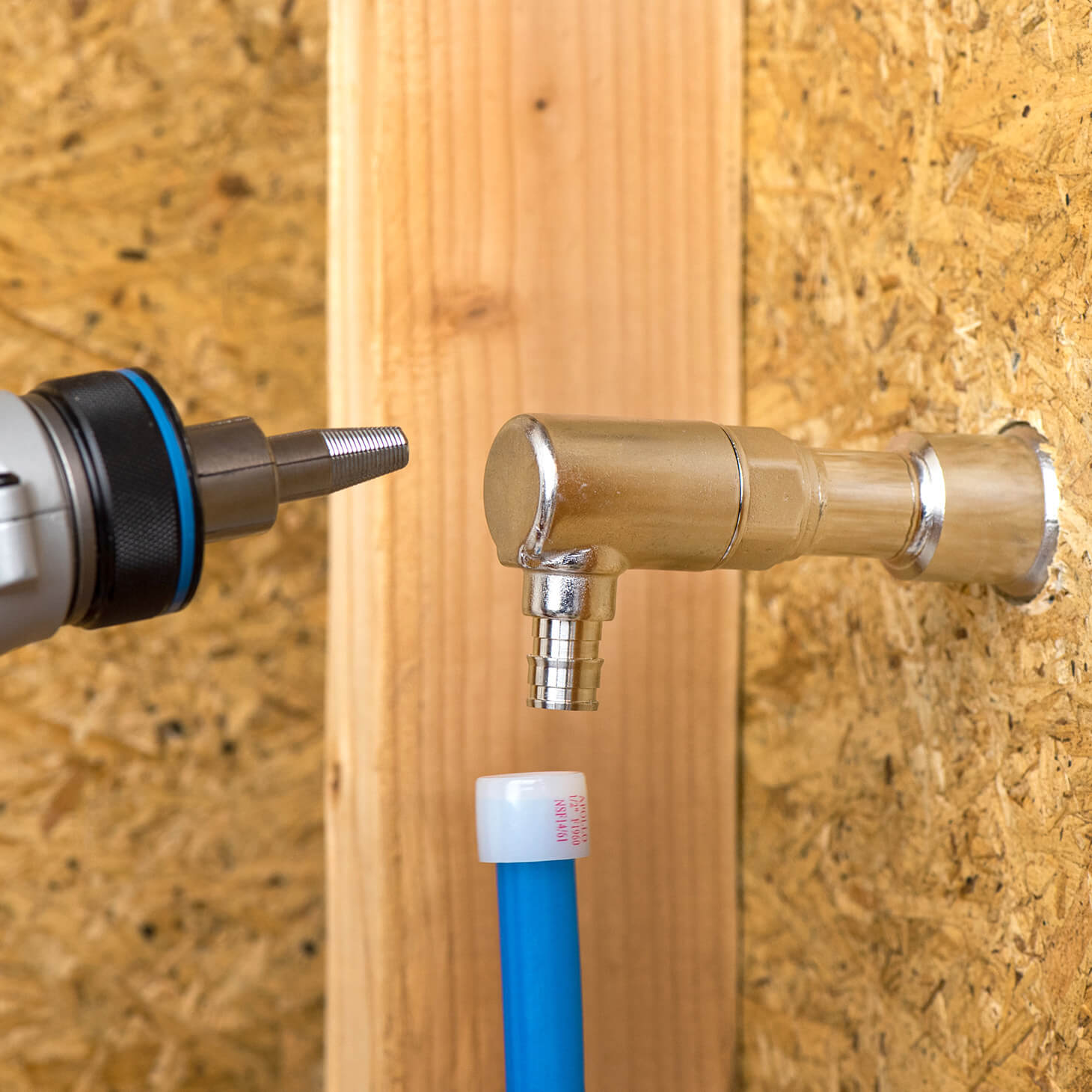

3: Connect to Plumbing

Connect to plumbing, then check for leaks and test Hydrant operation.

For PEX joints, wait 10 minutes for it to shrink down and set before turning on the water.

If possible, use a PEX expansion loop for easy plumbing maintenance down the road.

Make Sure You Have the Products You Need for an Easier Hydrant Install

Model
Pipe size
Connection type
Shape
Specification
Plumbing compatibility
Hydrant compatibility

- Current Product
- 1/2"
- ProPEX
- Elbow
- ASTM F1960
- PEX
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 1/2" PEX Expansion Inlet
  Shop Now
- 1/2"
- ProPEX
- Straight
- ASTM F1960
- PEX
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 3/4" PEX Expansion Inlet
  Shop Now
- 3/4"
- ProPEX
- Straight
- ASTM F1960
- PEX
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 1/2" PEX Crimp 90° Elbow Inlet
  Shop Now
- 1/2"
- PEX Clamp/Crimp
- Elbow
- ASTM F1807
- PEX
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 1/2" PEX Crimp Inlet
  Shop Now
- 1/2"
- PEX Clamp/Crimp
- Straight
- ASTM F1807
- PEX
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 1/2" NPT 90° Elbow Inlet
  Shop Now
- 1/2"
- NPT (f)
- Elbow
- ANSI B1.20.1
- All Plumbing (adapter may be needed)
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
- 3/4" NPT Straight Inlet
  Shop Now
- 3/4"
- NPT (m)
- Straight
- ANSI B1.20.1
- All Plumbing (adapter may be needed)
- House Hydrant V1/V1+/V2+, RV City Water Inlet, Universal Hydrant, Marine Deckwash
