1/2” PEX Crimp 90° Elbow Inlet
$17.99

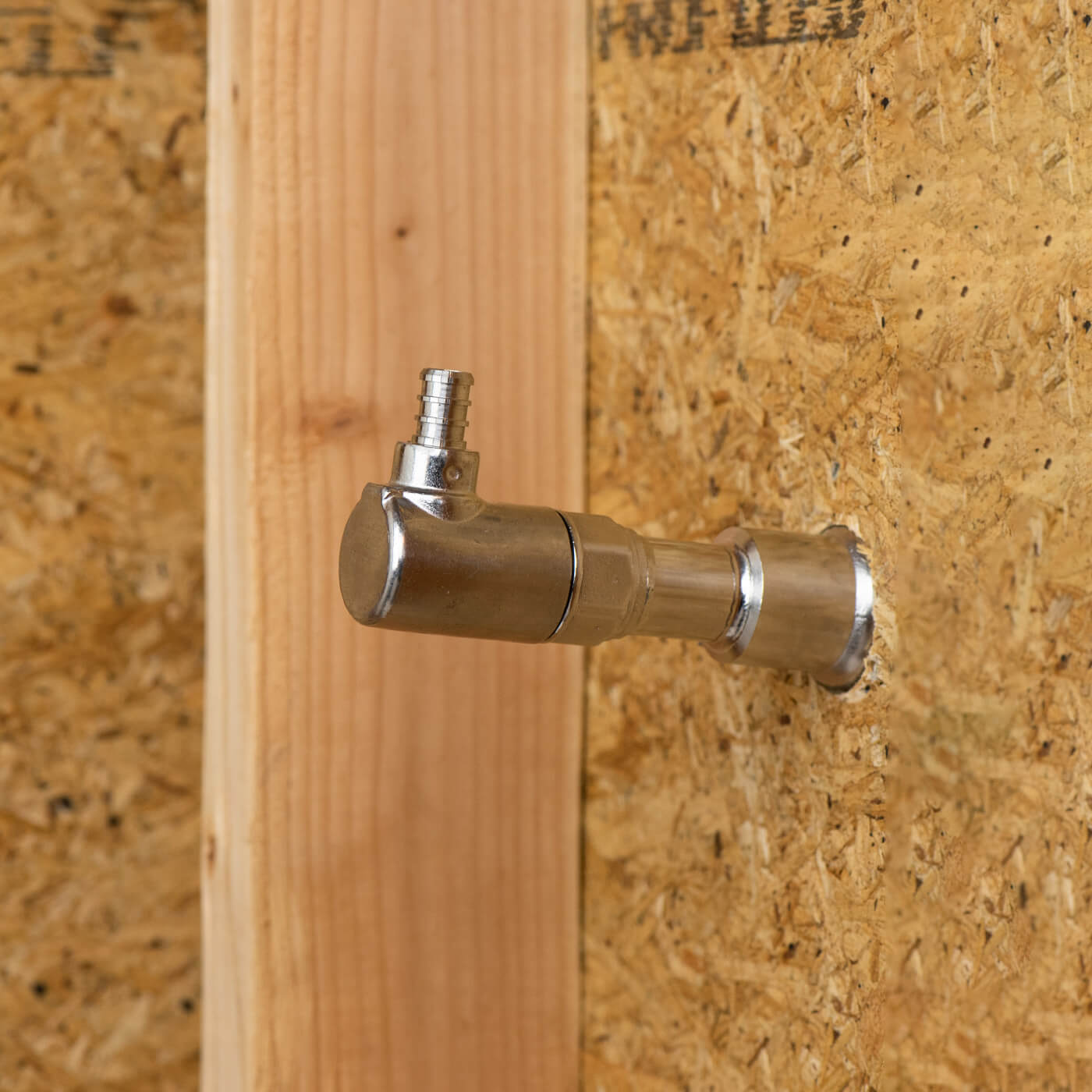

1/2” PEX Crimp 90° Elbow Inlet
Connect Aquor hydrants to 1/2″ PEX in seconds. Designed for use with 1/2″ PEX tubing and crimp ring fittings. Slide your PEX line over the fitting, then clamp the crimp ring to achieve a permanent, water-tight seal.
This elbow inlet can be positioned in any direction due to unique O-ring seal. Tighten fully, then back off to desired placement (up to 360°, 1 rotation). Compatible with all Aquor hydrants and outlets except Ground Hydrants.
Couldn't load pickup availability





Tech Specs
Compatibility | All Aquor hydrants except Ground Hydrant |
Inlet Threading | 1/2” PEX Crimp |
Outlet Threading | Unique to Aquor hydrants and outlets |
Material | Stainless Steel |
Warranty | Limited LIFETIME all stainless steel parts |
Installation
1. If applicable, remove existing hydrant inlet by unscrewing counterclockwise. Ensure the O-ring
on hydrant body is properly seated.
Note: DO NOT use Teflon tape on hydrant body threads. This may cause leaks. Teflon tape
should ONLY be used on plumbing connection (fitting) threads.
2. Attach elbow inlet to hydrant body by threading clockwise.
Note: The O-ring will keep a watertight seal up to 360° from full lock, up to 250 PSI. You may
rotate counterclockwise until it is positioned in the correct direction for installation.
3. Attach to PEX tubing using appropriate tool and clamp or crimp ring.
Learn more about PEX and how to connect on our blog.
